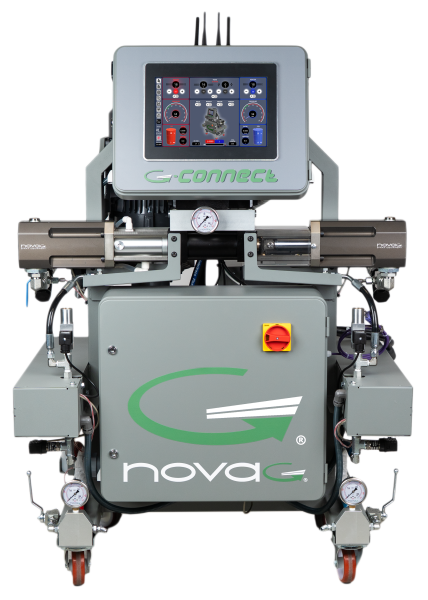

G-Connect

Technical specifications

MAX OUTPUT15 kg/min @ 110 bar
9 kg/min @ 160 bar
7 kg/min @ 240 bar
ELECTRICAL CONNECTION3PE 400V 50/60 Hz
3PE 230V 60 Hz
HEATING POWER12 kW
HOSE HEATING3 kW
MOTOR POWER4 kW
MACHINE CONSUMPTION38,4 A / 66,8 A
MAX HOSES LENGTH93 m (for foam)
78 m (for polyurea)
WEIGHT242 kg (without oil)
OIL CAPACITY28 l
DIMENSIONS1295 mm x 745 mm x 650 mm

Documentation

Service Manual



 Parts Manual



 Brochure

Features and Characteristics

–  Access all application data and generate your own reports from any device

–  GPS location

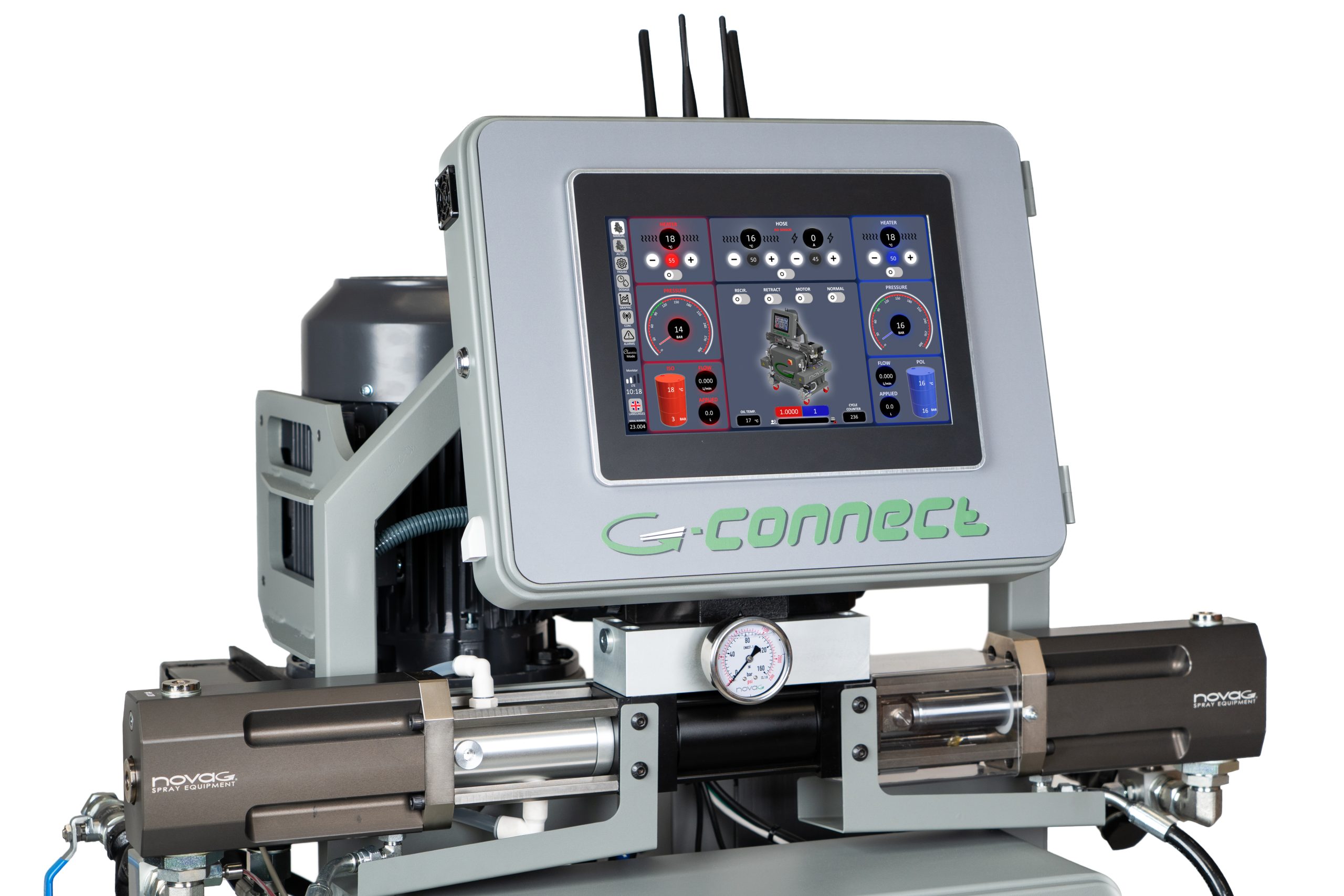

–  Smart touch screen easy to use

–  Remote control with your mobile device

–  Full control options:

  • Accurate ratio and output control with flowmeters
  • In & out temperatures and pressures control
  • Oil temperature
  • Alarms and troubleshooting guide
